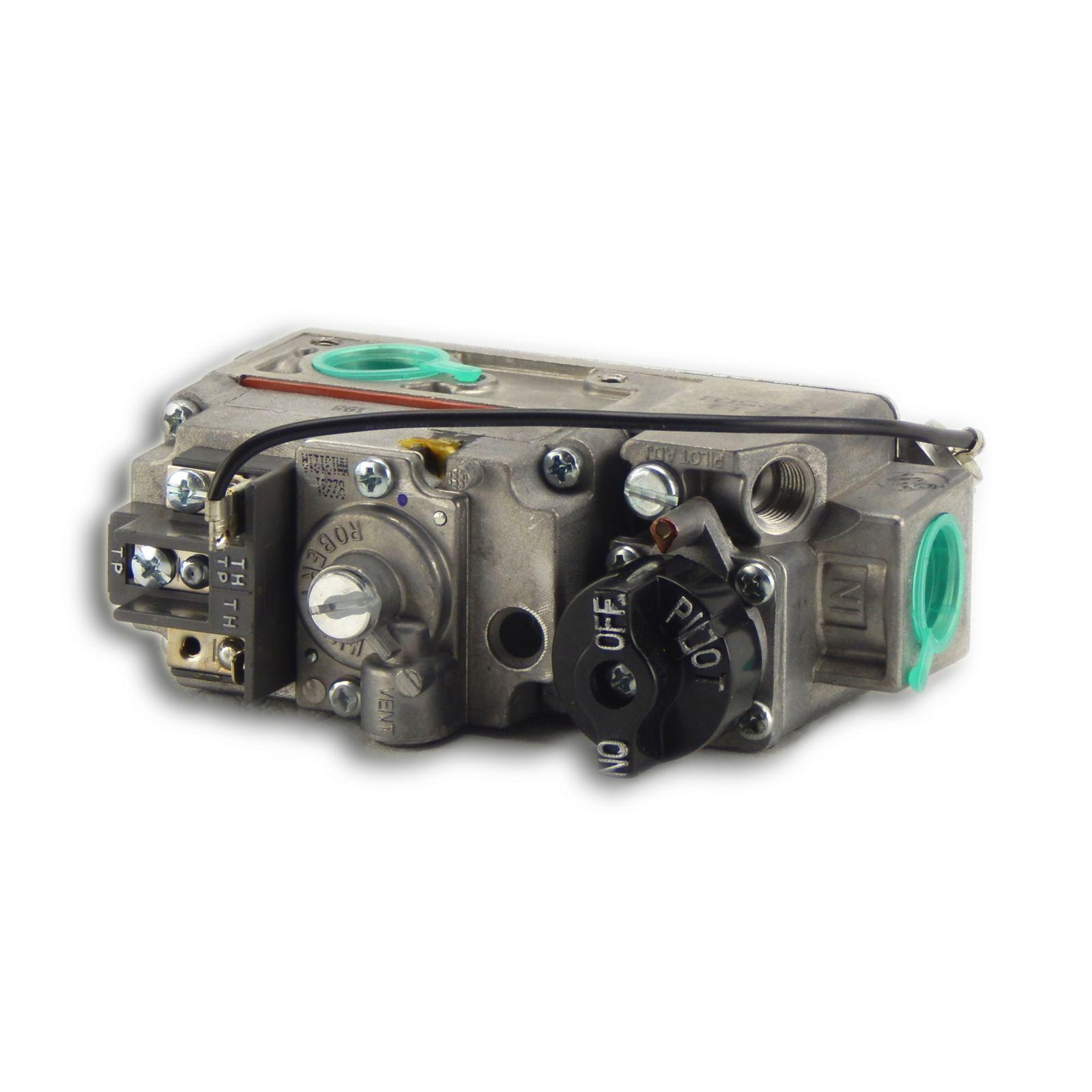

Robertshaw 710-502 - Gas Valve Millivolt, two lead ...
Thermopile Gas Valve Wiring Diagram - VS8510, VS8520 MILLIVOLT GAS VALVE Wiring Follow the wiring instructions furnished by the appliance manufacturer, if available, or use the general instructions provided below. Where these instructions differ from the appliance manufacturer, follow the appliance manufacturer instructions. For typical wiring diagrams, see Fig. 5 and 6.. Fig. 6. Proper use of wrench on gas valve. Fig. 7. Millivolt wiring system wiring diagram with quick drop-out thermocouple (VS8420D). OPERATION. The Millivolt Gas Valve System includes a gas valve, quick drop-out thermocouple, thermopile, millivolt thermostat and a pilot burner. In this configuration, the. Thermopile Gas Valve Wiring Diagram - dans-bar.co.uk. Posted on 25-Oct-2019 [Free Book] thermopile gas valve wiring diagram Dr. Seuss Ltd File ID 7135807 Creator : FineReader tp th and place one lead to th there must be two terminals in this connector block that powers the gas valve coil i suspect they are the white terminal..Help, I need wiring info for an old ITT general control gas valve on an outdoor swimming pool heater. The valve has 4 terminals, 2 labeled thermostat and 2 for the millivolt generator. I understand the safety devices get wired in series but I am not sure how the on/off switch and thermostat get wired in. Thanks, Mike. If resistance is outside of specifications listed, the gas valve must be replaced. Thermopile readings: With all wires connected, with the pilot on and burners off, the thermopile reading at the TP & THTP terminals should be ~325mV. With the burners on, the millivolt reading should be ~200mV. A replacement thermopile part # is 022770.. valve, there are two blue wire a inserted into this adapter. 2 to 6mv DC THERMOCOUPLE FOR valve. Make sure that the thermopile connections are tight on the valve. Place leads of multimeter on the “TP/TH-TP” terminals on gas valve. If the readings are less than 145mV DC, replace thermopile Continued on next page. Sherwood Industries.
brand boilers can do more, with less field wiring, and fewer aftermarket controls and components – improving the operation of both new and replacement boiler installations. These application drawings include detailed wiring diagrams, and set-up. Millivolt Troubleshooting Guide Gas Products NOVA SIT Valves conduct valve operating head test. If valve proves good, change the thermopile. Circuit Millivolt Check Symptom - Intermittent shutdown or main burner will not light with on/off switch. The Thermopile, energized by the pilot flame, generates sufficient power to operate the gas. Millivolt Gas Valves. For applications utilizing standing pilot powered by a 750mV thermopile for operation. VS820. These gas controls are used on gas fired, standing pilot appliances with 750 mV self-powered control systems. They include a manual gas valve, safety shutoff, single millivoltage automatic operator and pressure regulator..
Oct 26, 2010 · There must be two terminals in this connector block that powers the gas valve coil. I suspect they are the "white" terminal and TH1. This wiring should reduce to a simple series circuit: a gas valve coil in series with a thermopile in series with a t'stat with normally open contacts in series with a limit switch with normally closed contacts.. Gas Valves: A. Thermocouple Only B. Valves with Thermocouples and Thermopiles Since there is both a thermocouple and thermopile in this valve type, it is important to piece of wire to jump the “TP” and “TH” terminals located on these valves. If the. Country Flame Bayvue DV 30 User Manual • Sit 820 nova mv gas control valve, On off pilot hi lo, Version 1.0h 40 • Country Flame Tools SIT 820 mV NOVA GAS VALVE . NOTE: TP stands for thermopile, TH for thermostat, and TP TH for thermopile and thermostat. SIT 820 mV NOVA GAS VALVE WIRING DIAGRAM..
These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilot stat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Power pile generator (thermopile).. The Diagram Below shows how to connect the Linear Limit Spill Switch and Gas Pressure Switch with a Thermopile Style Gas Valve. NOTE: The JA1 Thermocouple Junction Adapter is not used with this style of gas valve. The 1/8 - NPT, 2” long male nipple and 1/8 - NPT coupler must be installed into the gas valve pressure tap port as shown below..
